Bocklet
Dakar 748
| Chassis | Steyr (Excap mod.) 12M23 |
| Wheelbase | 4000 mm |
| GVW | 11.500kg |
| L x W x H | 7480 mm x 2500mm x 3700 mm |

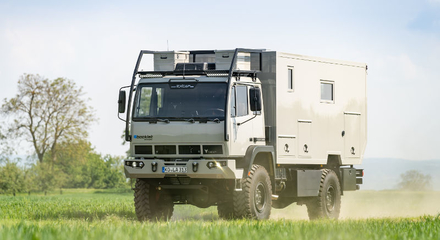

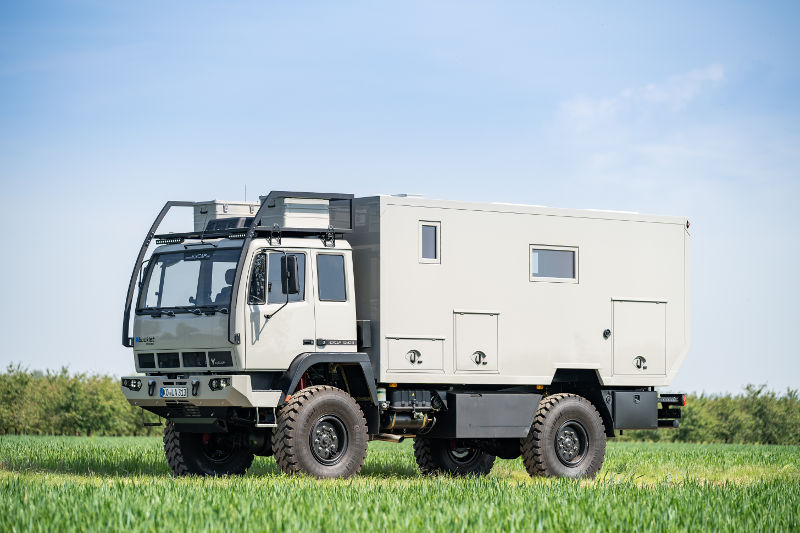

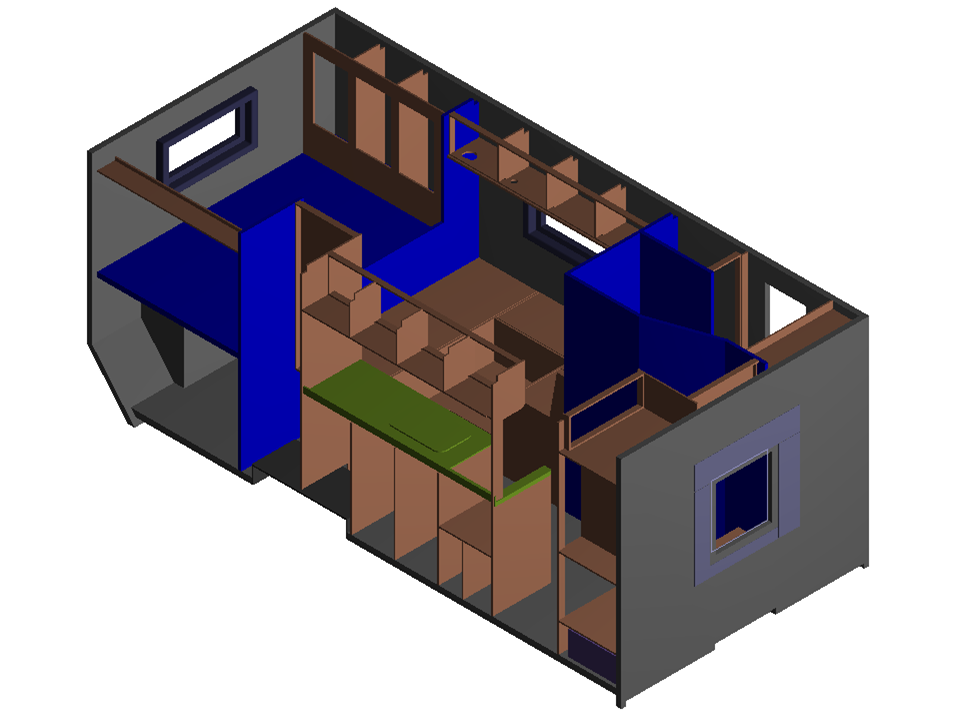

This Bocklet Dakar long-distance mobile home comes on the basis of an original Steyr 12M18. This was prepared by the company Excap and the chassis received a wheelbase extension. This allows us a cabin with an interior length of 5200mm. The comfortable living space is divided into rear transverse bed, U-seating group in front of the vehicle in the longitudinal direction with kitchenette. In front there is the bathroom with separate shower and refrigerator and storage cupboards. Thanks to the spare wheel carrier integrated in the rear wall, this one finds a user-friendly and center-of-gravity favorable position without the body getting longer.
Technical Data
Chassis
| Chassis | Steyr (Excap mod.) 12M23 |
| Wheelbase | 4000 mm |
| GVW | 11.500kg |
| Engine | 6-Cylinder Turbodiesel |
| Capacity | 6000 |
| Engine power | app. 170/230 |
Body
| GRP sandwich-construction, free of thermal bridges | |
| Wall thickness | 51 mm |
| Roof thickness | 50 mm |
| Bottom thickness | 60 mm |
Interior
| Length | 5200 mm |
| Width | 2400 mm |
| Height | 2040 mm |
| Seats with belt | 3 |
| Front bed | seating area convertable |
| Rear bed | 2000 x 1400 mm |
Specifications
Chassis and body
- Steyr 12M18 4x4
- All-wheel drive
- Diff-lock rear axle
- Diff-lock front axle
- Fuel tank app. 640l
- comfort seats
- air condition
- rear view camera
- 3 seats in cab
- GRP body construction
- Cover layer 3 mm, rowing mesh
- frostbridge free bocklet doors and hatches
- storage compartment under bed, full width
- glas windows
- glas skylights, marine skylights
- electric and automatic staircase
- pass to driver cab with lockable door
- roof carrier with storage boxes
- Light carrier with LED Bars on cab
Interior and options
- furniture made of 16mm wood, white / teak combination
- drawers with Soft Slide-In
- fabric cover seating area
- double floor in seating area
- Diesel - air heating
- Gas- warm water heating with electric power option
- Batteriecapacity 4x220Ah AGM
- Automaticharger 24 V / 50 A
- Inverter 2 kW
- photovoltaik installation of 1080WP
- control panel
- LED lightning
- porcelain cassette toilet with SOG
- white-armature with single-leve
- 3-flams stove with oven
- Fridge 140l
- Countertops mineral stone
- Radio CD / Bluetooth
- Tanks inside and frost free:
- freshwater 450l
- grey water 220l
- automatic Satelite TV system with LED TV
