Bocklet
Dakar 795
| Chassis | MAN TGM 13.290 4x4 |
| Wheelbase | 4200 mm |
| GVW | 13.000kg |
| L x W x H | 7950 mm x 2520mm x 3770mm |
MAN TGM 4x4 mit Zwei-Raum Wohnkonzept. Darüberhinaus verfpgt dieses Fahrzeug über eine maßgeschneiderte PKW Garage im Heck. Einzigartig bei einer Aussenlänge von weniger als 8m. Dieses innovative Grundrisskonzept überzeugt mit hervorragender technischer Ausstattung und angenehmen Raumkonzept
Technical Data
Chassis
| Chassis | MAN TGM 13.290 4x4 |
| Wheelbase | 4200 mm |
| GVW | 13.000kg |
| Engine | 6-cylinder Turbodiesel |
| Capacity | 6871 |
| Engine power | 231/290 |
Body
| GRP sandwich-construction, free of thermal bridges | |
| Wall thickness | 51 mm |
| Roof thickness | 50 mm |
| Bottom thickness | 60 mm |
Interior
| Length | 5950 mm |
| Width | 2420 mm |
| Height | 2200 mm |
| Seats with belt | 2 |
| Front bed | - |
| Rear bed | 2000 x 1400 mm |
Specifications
Chassis and body
- MAN 13.290 4x4
- engageable all-wheel drive
- Diff-lock rear axle
- Diff-lock front axle
- Fuel tank app. 730l
- Comfort seats
- Air condition
- Rear view camera
- 2 comfort seats
- GRP body construction
- Cover layer 3 mm, rowing mesh
- frostbridge free bocklet doors and hatches
- glas windows
- glas skylights
- electric and automatic staircase
- pass to driver cab with lockable door
- Roof carrier with boxes and LED Bars on cab

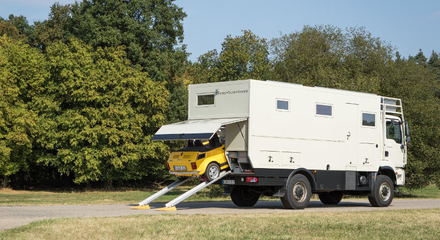

- rear garage for Fiat passenger car with mounting system and winch

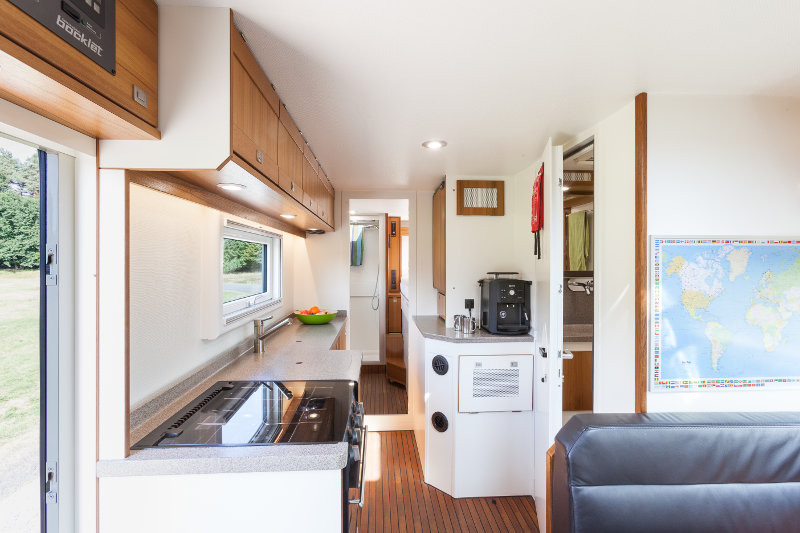

Interior and options
- Furniture teak vener
- Seat cover leather
- Gas- warmwater heating system with E-option
- Diesel-warm air heating system
- Diesel warmwater heating system
- Battery capacity 880 Ah
- Automatic charger 24 V / 50 A 90-270V
- Inverter 2000 W
- Solar installation 1320W
- Air condition for rear body
- control panel
- LED lightning
- Tank Toilet system
- Tanks inside and heated
- Fresh water 410 l
- Grey water 270 l
- Black water 220 l
- white-armature with single-lever
- 3-flame stove and oven
- copressor fridge 140l and 30l freezer
- countertop kitchen and bath in mineral stone
