Bocklet
Dakar 800
| Chassis | MAN TGM 13.290 4x4 |
| Wheelbase | 4200 mm |
| GVW | 13.000kg |
| L x W x H | 8000 mm x 2500mm x 3700 mm |

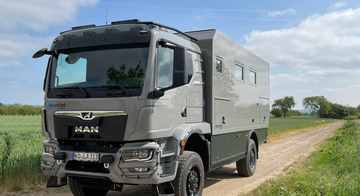

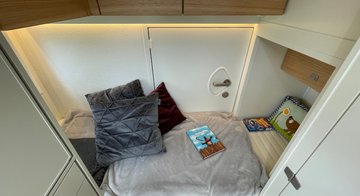

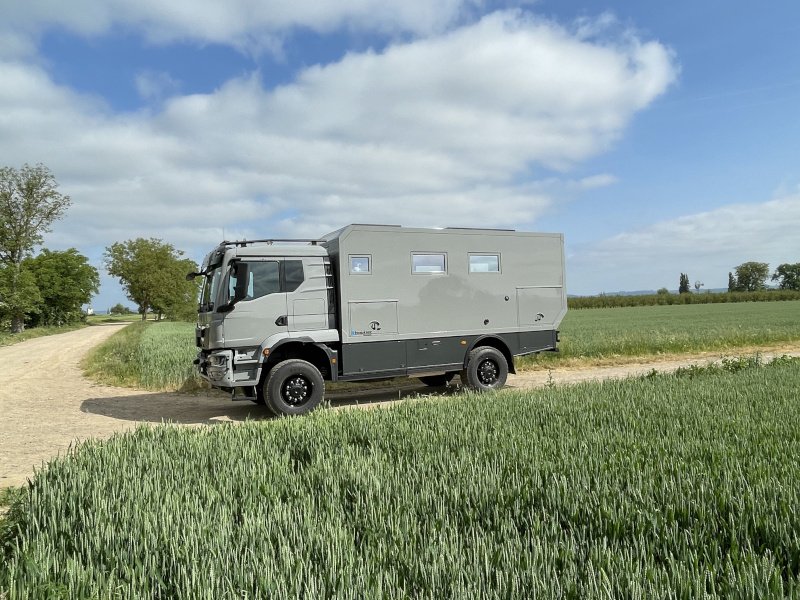

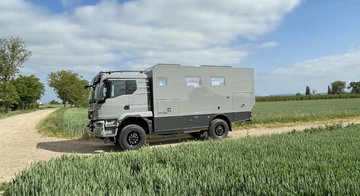

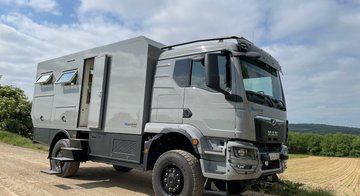

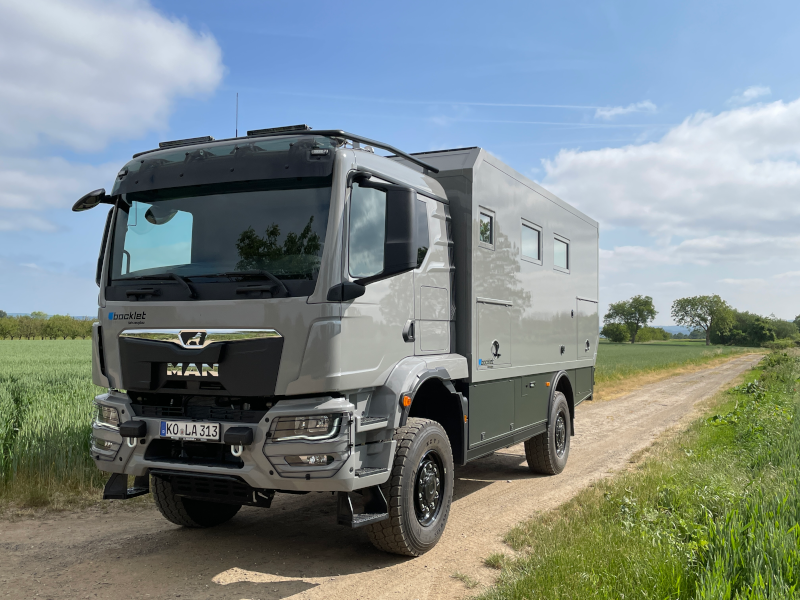

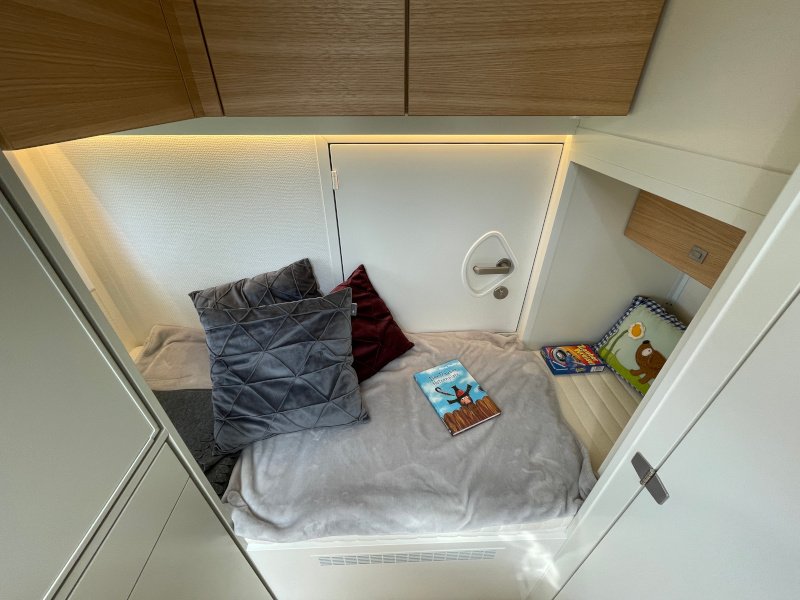

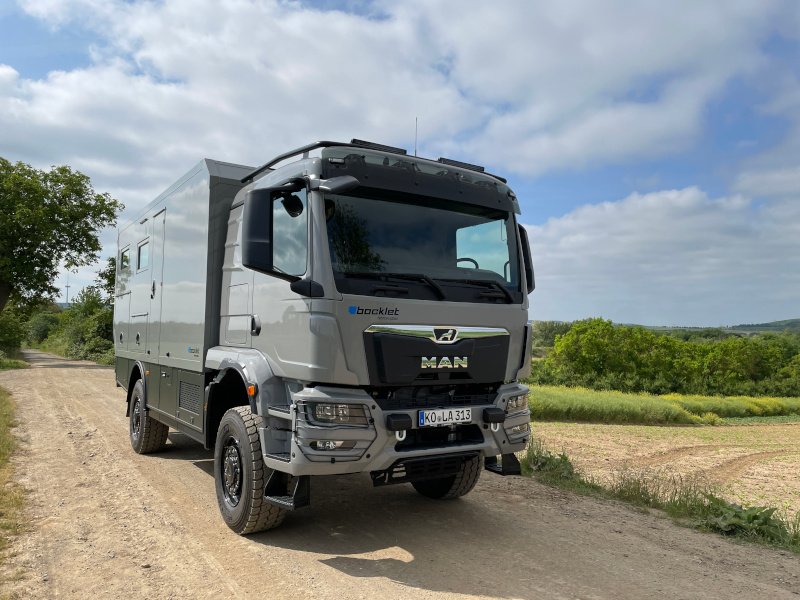

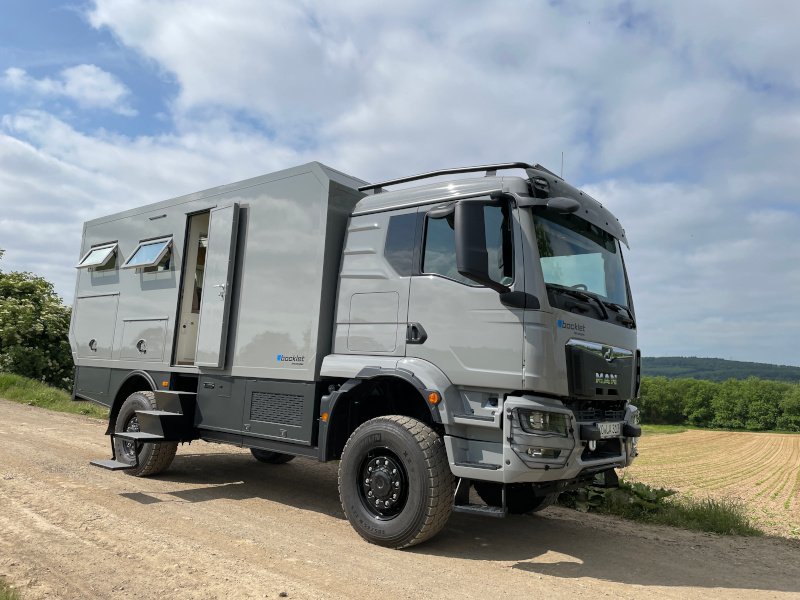

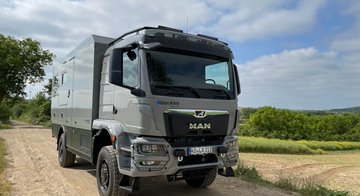

Based on a MAN TGM 4X4, a sporty, family-friendly motorhome with a spacious rear garage and lots of great details has been created. The children's bed can optionally be extended into a fully-fledged third bed in the shower in just a few simple steps. In a two-person configuration, this space is alternatively available for additional storage space. This Bocklet long-distance motorhome is also manufactured and equipped to the highest technical and craftsmanship standards.
Technical Data
Chassis
| Chassis | MAN TGM 13.290 4x4 |
| Wheelbase | 4200 mm |
| GVW | 13.000kg |
| Engine | 6-Cylinder Turbodiesel |
| Capacity | 6871ccm |
| Engine power | 231/290kW/PS |
Body
| cold bridge-free GRP sandwich construction | |
| Wall thickness | 50 mm |
| Roof thickness | 50 mm |
| Bottom thickness | 60 mm |

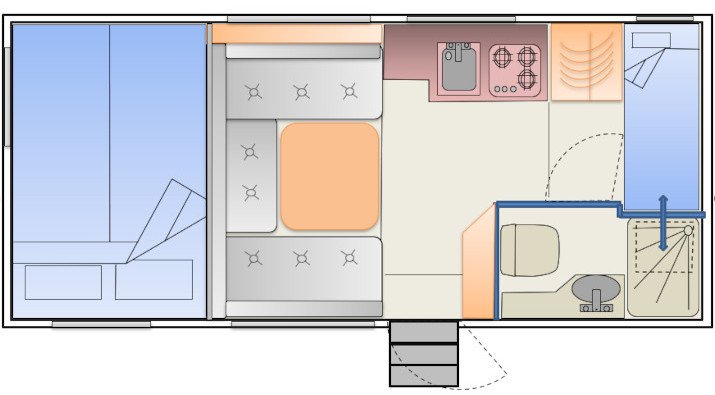

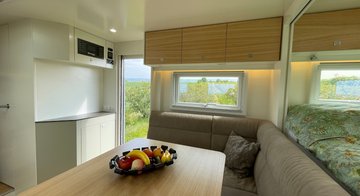

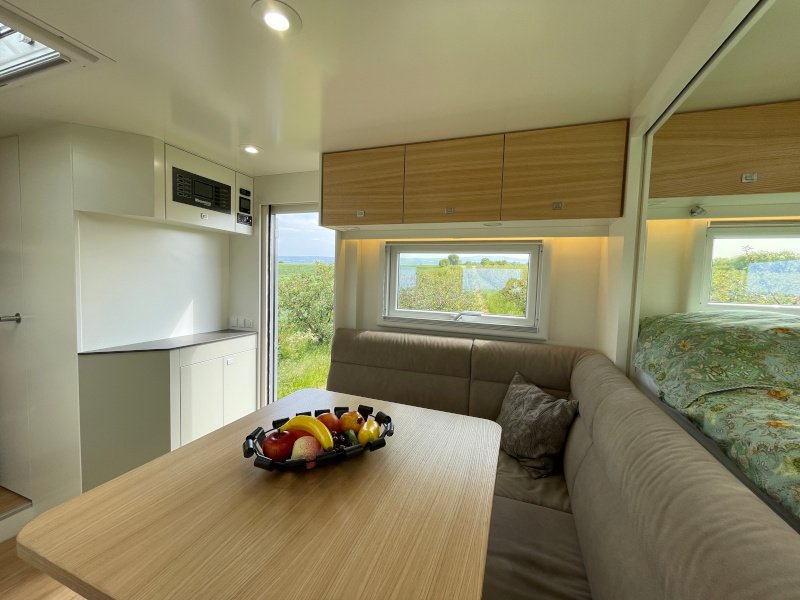

Interior
| Length | 5450 mm |
| Width | 2360 mm |
| Height | 2150 mm |
| Seats with belt | 3 with Three-point belt |
| Front bed | 2000x650 mm |
| Rear bed | 2000 x 1450 mm |
Specifications
Chassis and body
- MAN 13.290 4x4
- Permanent all-wheel drive
- Differential lock rear axle
- Differential lock front axle
- Fuel tanks approx. 500l total volume
- Comfort seats and sound system
- Reversing camera
- 3 seats in the cab
- GRP sandwich body with no cold bridges
- Wall/floor thickness 50 / 60 mm
- Top layer 3 mm, fabric-reinforced
- cold bridge-free Bocklet doors and flaps with GRP step profile, KSD hollow rubber seal
and multi-point locking

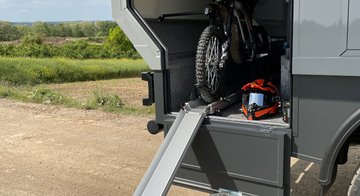

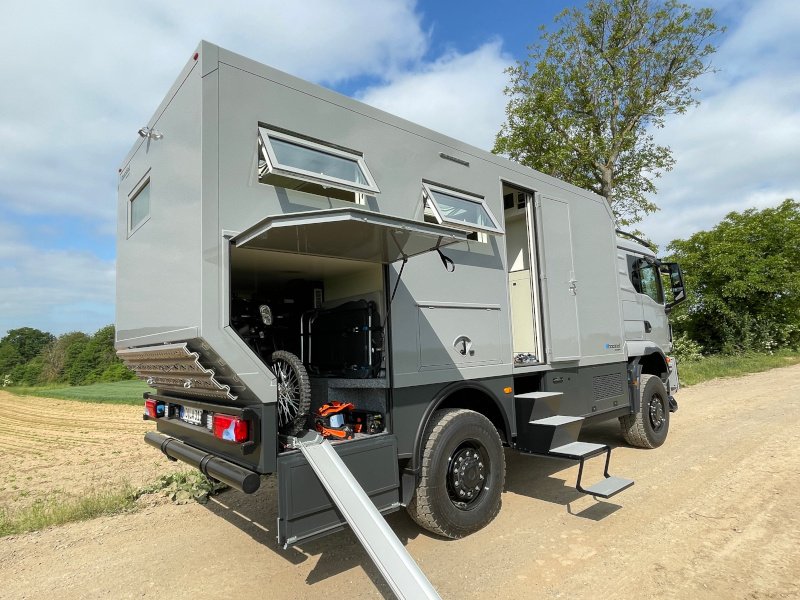

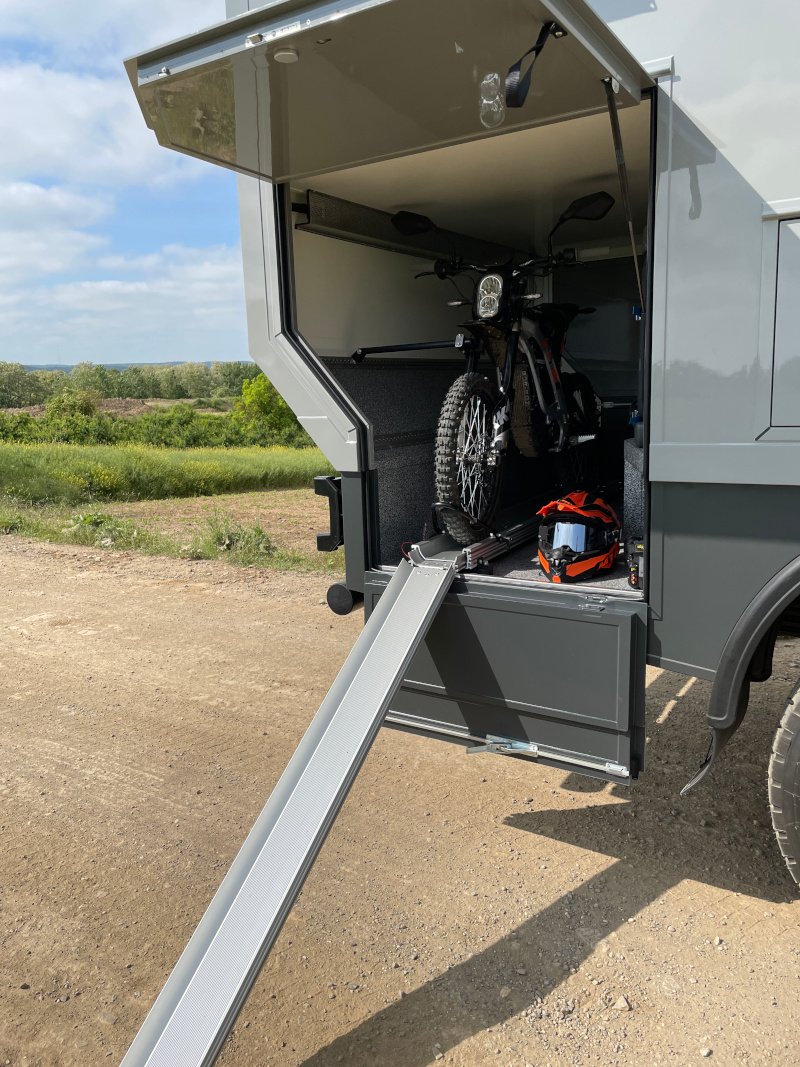

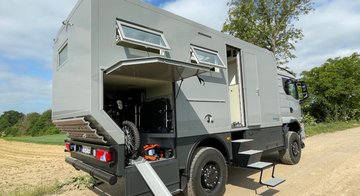

-Rear lowering with large storage garage for bicycles or motorcycle / scooter
-Side skirts in GRP sandwich construction
- Electric entrance step with automatic control
- KCT real glass hinged windows
- KCT real glass roof hatches
- Roof ventilator
- Cab passageway with lockable door
- Lamp holder with LED bars on cab

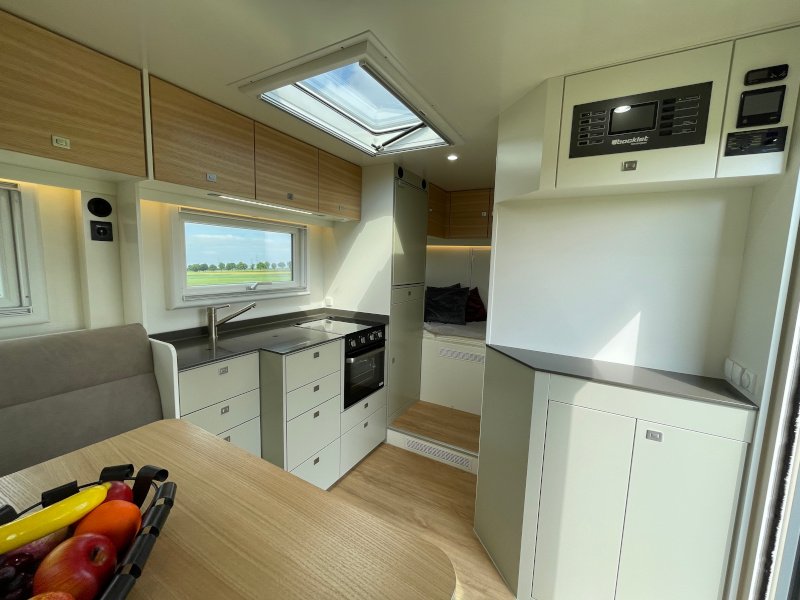

Interior and options

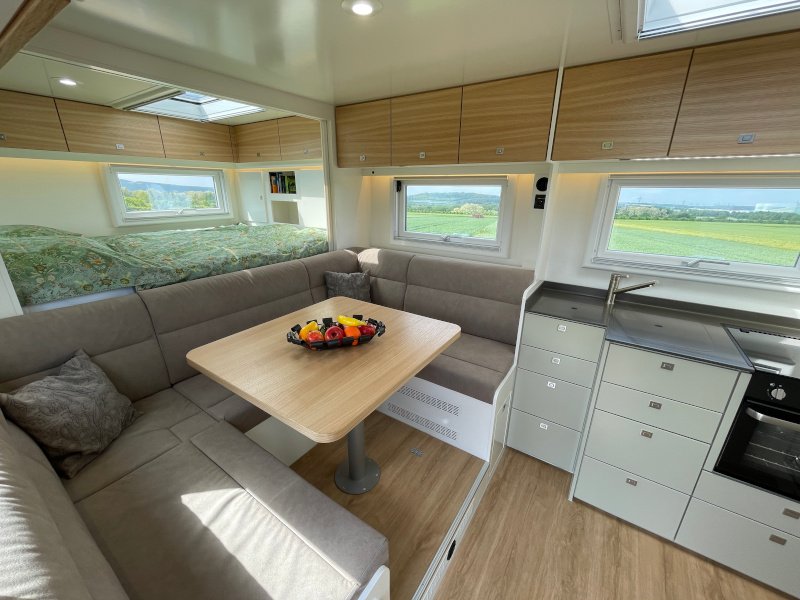

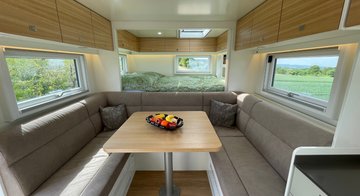

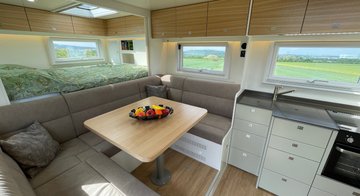

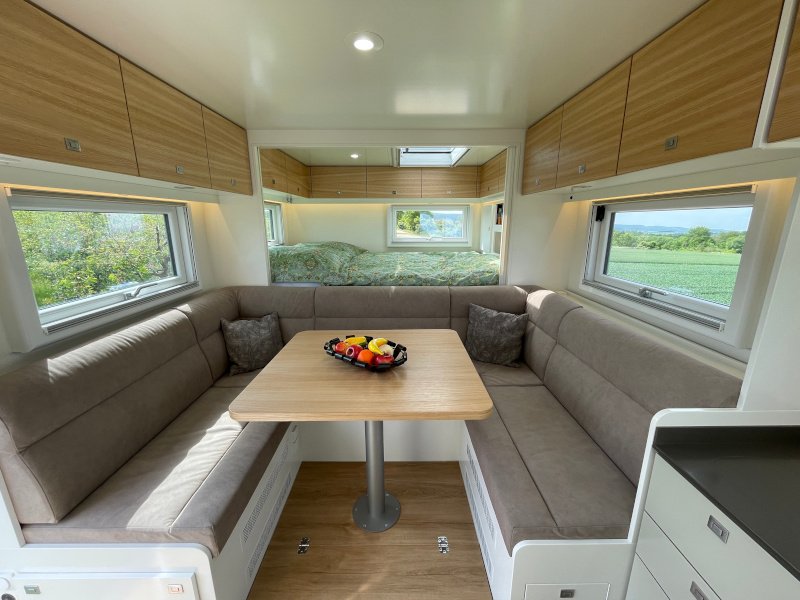

-furniture construction in white / grey lacquered , real wood veneer chestnut
- Seat upholstery fabric cover
- Hot water heating with boiler gas & 230V
- Diesel hot air heating with altitude kit
- Battery capacity 24V 440Ah Lithium,
- Automatic charger & inverter
2KW / 50A 24V
- Solar system 1,5kW with MPPT controller
-Air conditioner 1800W underfloor
- Control panel with ampere-hour meter
- Lighting LED spotlights
- Gravity fixed tank toilet

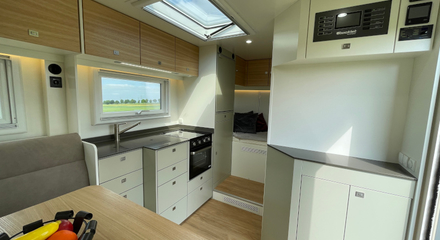

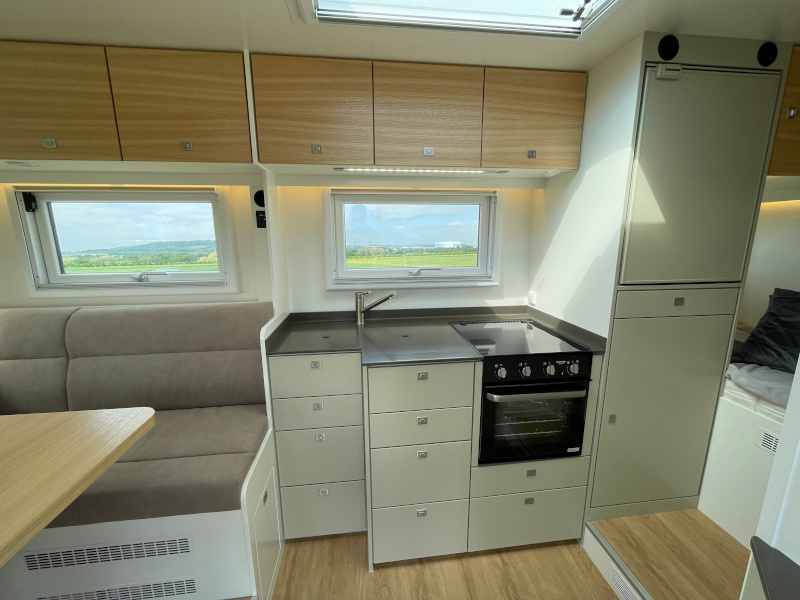

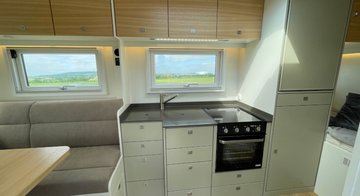

-Mineral stone worktop
- Tanks inside and heated
- Fresh water tank 430 l
- Waste water tank 200 l
- Holding tank 250 l
