Bocklet
Dakar 755 6x6
| Chassis | Mercedes-Benz Sprinter 6x6 |
| Wheelbase | 4325 |
| GVW | 7000 kg |
| L x W x H | 7550 mm x 2250 mm x 3200 mm |
Technical Data
Chassis
| Chassis | Mercedes-Benz Sprinter 6x6 |
| Wheelbase | 4325 |
| GVW | 7000 kg |
| Engine | 6 Cylinder Turbodiesel |
| Capacity | 2987 ccm |
| Engine power | 140 kW / 190 PS |
Body
| GRP sandwich-construction, free of thermal bridges | |
| Wall thickness | 50 mm |
| Roof thickness | 50 mm |
| Bottom thickness | 60 mm |

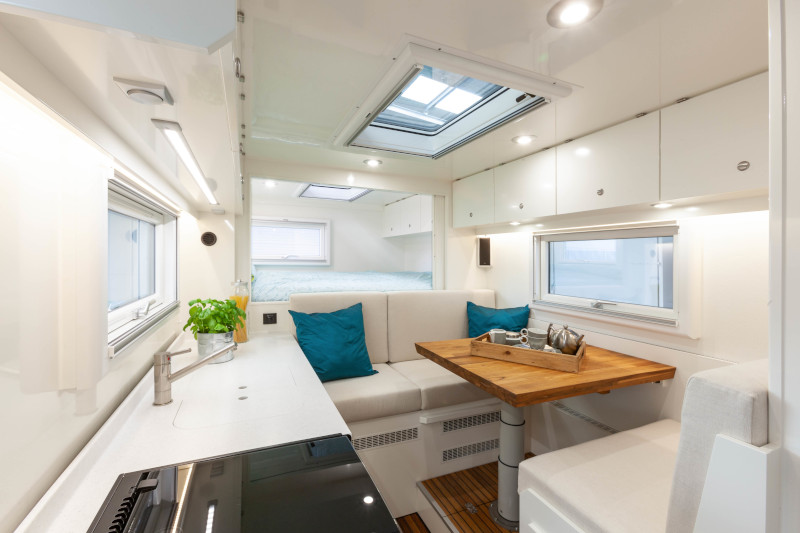

Interior
| Length | 5000 mm |
| Width | 2100 mm |
| Height | 2000 mm |
| Seats with belt | - |
| Front bed | - |
| Rear bed | 2000 x 1400 mm |
Specifications
Chassis and body
- All wheel drive
- Diff-lock front axle
- Fuel tank 165 l
- Comfort seats
- Radio CD
- Rear view camera
- GRP body construction
- Cover layer 2 mm, rowing mesh
- frostbridge free bocklet doors and hatche
- Rear storage compartment under bed
- Storage box for roof rack
- electric and automatic staircase
- pass to driver cab with lockable door
- glas windows
- glas skylights
- Electric vent
- sand ladders
Interior and options
- Furniture in birch veneer
- Seat cover fabric
- Double floor in seating area
- Diesel-airheating
- Gas-waterheating
- Battery capacity 220Ah
- Automatic charger 12 V / 50 A
- Inverter 2 kW
- Solar installation 320 W
- control panel
- LED lightning
- cassete toilet
- white-armature with single-leve
- 3-flams stove with oven
- Fridge 110 l
- Tanks inside and heated:
- Freshwater 430l
- Greywater 220l
- Gastank 60 l
- Gasbottles 2x11 kg
- Automatic tv satelite system
- LED-TV
