Bocklet
Dakar 737
| Chassis | Iveco Daily 70S18HA8WX |
| Wheelbase | 4175 |
| GVW | 7000 kg |
| L x W x H | 7360 mm x 2340 mm x 3270 mm |
With the Dakar 737, we present a Bocklet long-distance motorhome on an Iveco Daily 4x4 with a long wheelbase. The possible body length creates a beautiful living concept. There is a large lowered garage at the rear for carrying a motorcycle, scooter or bicycles. Above this is a transverse sleeper bed with windows to the side and rear. The comfortable seating area is located towards the front in the direction of travel. The wet room with integrated shower and the kitchenette are located at the front of the superstructure. The storage alcove above the driver's cab offers additional space for equipment and supplies.
Technical Data
Chassis
| Chassis | Iveco Daily 70S18HA8WX |
| Wheelbase | 4175 |
| GVW | 7000 kg |
| Engine | 4 Zylinder Turbodiesel |
| Capacity | 2998 ccm |
| Engine power | 132 kW / 180 PS |
Body
| kältebrückenfreie GFK-Sandwich-Konstruktion | |
| Wall thickness | 50 mm |
| Roof thickness | 50 mm |
| Bottom thickness | 60 mm |
Interior
| Length | 4740 mm |
| Width | 2150 mm |
| Height | 2100 mm |
| Seats with belt | - |
| Front bed | - |
| Rear bed | 2000 x 1400 mm |
Specifications
Chassis and body
- All-wheel drive
- Differential lock rear axle
- Differential lock front axle
- Fuel tank 250L
- Comfort seats
- Bluetooth radio
- reversing camera
- GRP sandwich construction without cold bridges
- 2 mm top layer, fabric-reinforced
- cold bridge-free bocklet doors and flaps with GRP step profile, KSD hollow rubber seal and multi-point lock
- Electric access step with automatic control
- Real glass hinged windows
- Real glass roof hatches
- Cab access with lockable door

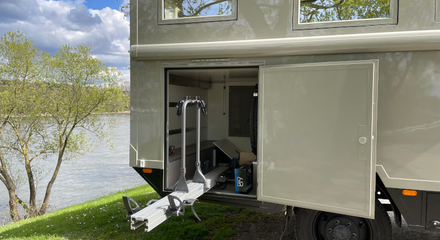

- Lowered rear garage full vehicle width
- Spare wheel attachment on the inside
- Bicycle pull-out with transverse displacement
- LED ambient lighting
Interior and options
- Furniture construction in white CPL with smoked oak real wood edging
- Seat upholstery with fabric cover
- Double floor in the bench area
- Gas-powered hot water heater with integrated boiler and electric cartridge
- Additional diesel heater hot air
- Battery capacity 660Ah Lithium/ 12V
- Automatic charger 12V /80 A
- Charging booster 70A
- Inverter 3000W
- PV system 780WP
- Control panel with ampere-hour meter
- LED lighting spots, ceiling spots, indirect
- Compost toilet
- Household taps with single-lever mixer
- 3-burner hob
- Gas oven with grill
- Compressor fridge with separate ice compartment
- Tanks inside and heated:
- Fresh water tank approx. 250l
- Waste water tank approx. 130l
- Composting toilet with permanent ventilation
- Gas tank 60l
