Bocklet
Dakar 736

Chassis Iveco Daily 70S18HA8WX
Wheelbase 4175
GVW 7000 kg
L x W x H 7360 mm x 2350 mm x 3200 mm

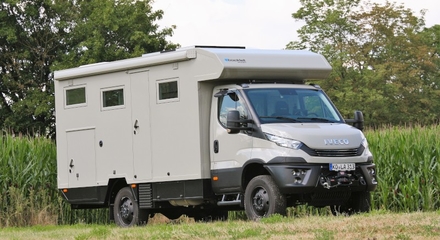

With the Dakar 736 we present a Bocklet long-distance motorhome on Iveco Daily 4x4 with long wheelbase. The possible body length creates a nice living concept. In the rear there is a large lowered garage for taking a motorcycle, scooter or bicycles. Above it a transverse sleeper bed that can be extended to a longitudinal bed if necessary. In the direction of travel to the front is the seating area, bathroom with separate shower and kitchenette. The storage alcove above the driver's cab offers further space for equipment and supplies.




Technical Data

Chassis

Chassis Iveco Daily 70S18HA8WX
Wheelbase 4175
GVW 7000 kg
Engine 4 Cylinder Turbodiesel
Capacity 2998 ccm
Engine power 132 kW / 180 PS

Body

GRP sandwich-construction, free of thermal bridges
Wall thickness 50 mm
Roof thickness 50 mm
Bottom thickness 60 mm

Interior

Length 4750 mm
Width 2150 mm
Height 2100 mm
Seats with belt -
Front bed -
Rear bed 2000 x 1400 mm



Specifications

Chassis and body

  • All wheel drive
  • gear reduction
  • Fuel tank 250 l
  • Comfort seats
  • Radio bluetooh
  • Rear view camera
  • GRP body construction
  • Cover layer 2 mm, rowing mesh
  • frostbridge free bocklet doors and hatche
  • lowered storage compartment under bed
  • inside spare wheel carrier
  • electric and automatic staircase
  • pass to driver cab with lockable door
  • glas windows
  • glas skylights
  • Electric vent

Interior and options

  • Furniture construction in white CPL coating with grey edge
  • Seat cover fabric
  • Double floor in seating area
  • Warm water heating with hot water device and electric device
  • Battery capacity 66Ah Lithium 12V
  • Automatic charger 12 V / 50 A
  • Inverter 2 kW
  • Solar installation 720 W
  • control panel
  • LED lightning
  • separation toilet
  • white-armature with single-leve
  • 3-flams stove with oven
  • Fridge 130 l
  • Tanks inside and heated:
  • Freshwater 240l
  • Greywater 140l
  • Gas tank 70l
  • Automatic tv satelite system and LED TV
