Bocklet
Dakar 728

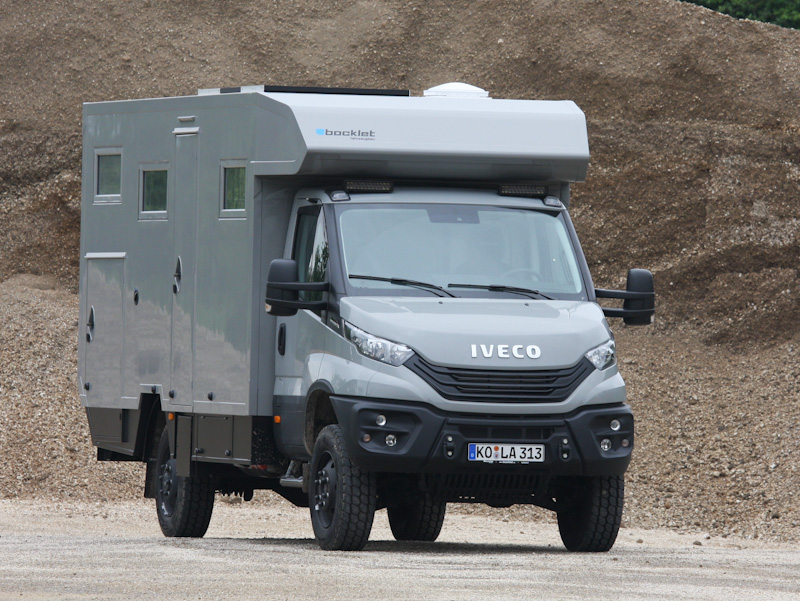

Chassis Iveco Daily 70S18HA8WX
Wheelbase 4175mm
GVW 7000kg
L x W x H 7280mm x 2300mm x 3270mm

Dakar 728 - the vehicle for individualists!

If you enjoy travelling to remote places, then this vehicle is for you: off-road capability thanks to the tried-and-tested all-wheel drive with differential lock. Absolutely suitable for long-distance travelling thanks to the large fuel tank, automatic transmission and comfortable seats. Ideal for outdoor sports enthusiasts with space for off-road bikes in the rear garage. And after travelling or outdoor activities, the generously designed living area invites you to end the day in a modern, cosy ambience. The wet room with every comfort leaves nothing to be desired. The concept of our Dakar 728 is designed for all users who love independence and at the same time want to use their own resources in an environmentally conscious way.





Technical Data

Chassis

Chassis Iveco Daily 70S18HA8WX
Wheelbase 4175mm
GVW 7000kg
Engine 4-cylinder Turbodiesel
Capacity 3000ccm
Engine power 132/180kW/PS

Body

GRP sandwich structure without cold bridges
Wall thickness 50mm
Roof thickness 50mm
Bottom thickness 60mm

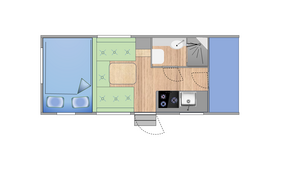

Interior

Length 4740mm
Width 2150mm
Height 2100mm
Seats with belt 2
Front bed
Rear bed 2



Specifications

Chassis and body

  • - GRP sandwich construction without cold bridges
  • - Wall/floor thickness 50 / 60 mm
  • - Cover layer 2 mm, fabric-reinforced
  • - cold bridge-free bocklet doors and flaps with
  •   GRP step profile, hollow rubber seal
  •    and multi-point locking

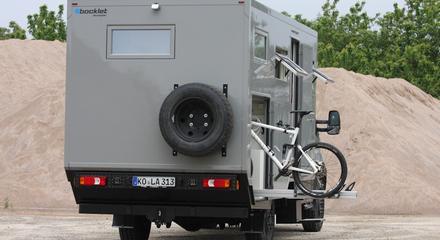

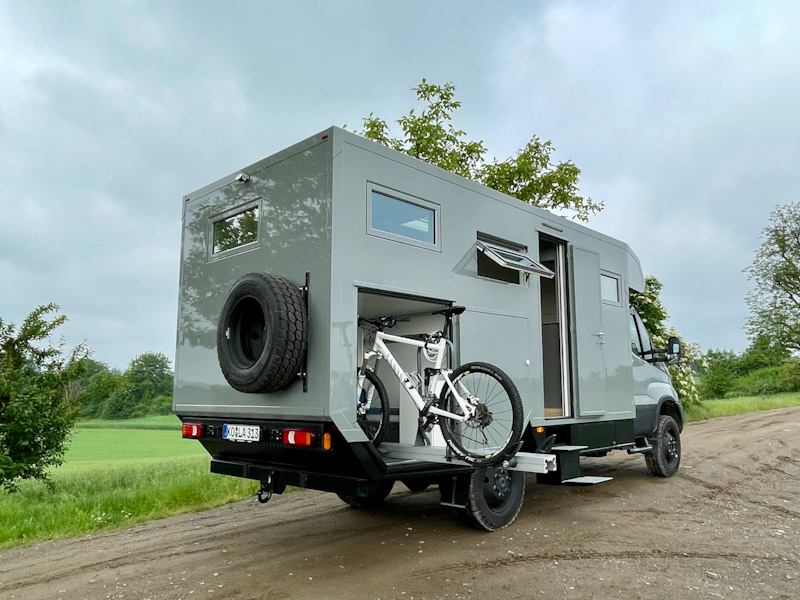

  • - Lowered rear garage with bicycle pull-out
  • - Electric entrance step with automatic control
  • - Real glass hinged window
  • - Real glass roof hatch and bathroom roof vent
  • - Cab access with lockable door
  • - Spare wheel holder at the rear Exterior
  • - Alcove storage space above driver's cab

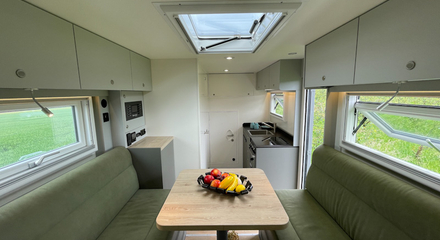

Interior and options

-furniture construction in mix grey lacquered/ limed oak HPL surface
- Fabric seat upholstery
- Gas hot water heating with electric cartridge
   and 10 litre boiler
- Diesel hot air heating with height kit
- Battery capacity 660Ah 12V LiFePO4
- Automatic charger 12V /80A
- Inverter 1600 W

- airconditioning system rear body
- Solar system 760W
- Control panel
- LED lighting
- Tanks inside and heated
     - Fresh water tank 220 litres
      - Waste water tank 125 litres
- Composting toilet with electric agitator
- Gas tank 80l, gas bottles 1x 11kg
-Household taps with single lever mixer
- 3-burner cooker with gas oven
- Compressor fridge 130 litres
- Mineral stone washbasin worktop
