Bocklet
Dakar 665U
| Chassis | Unimog 437/20 |
| Wheelbase | 3700mm |
| GVW | 9000kg |
| L x W x H | 6650mm x 2420mm x 3538mm |

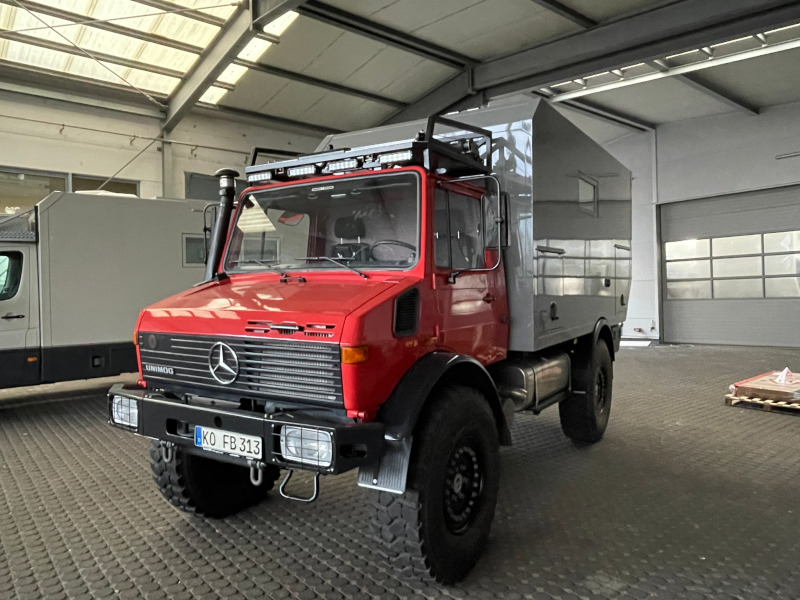

The Unimog is a classic among expedition vehicles: this basic model has always had exceptional off-road driving characteristics. With our Dakar 665U, you can experience the fascination of this legendary vehicle without having to compromise on travelling comfort.
Technical Data
Chassis
| Chassis | Unimog 437/20 |
| Wheelbase | 3700mm |
| GVW | 9000kg |
| Engine | 6-cylinder Diesel |
| Capacity | 5958ccm |
| Engine power | 125/170 |
Body
| cold bridge-free GRP construction | |
| Wall thickness | 50 |
| Roof thickness | 50 |
| Bottom thickness | 60 |

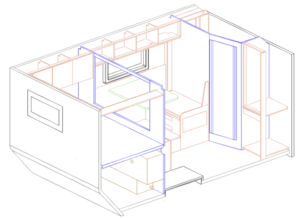

Interior
| Length | 4150mm |
| Width | 2200mm |
| Height | 1950mm |
| Seats with belt | 2 |
| Front bed | |
| Rear bed | 2 |
Specifications
Chassis and body
- All-wheel drive
- Differential lock rear axle
- Differential lock front axle
- Comfort seats
- Reversing camera
- Roof rack with wheel holder
- Diamond-mounted, cold-bridge-free GRP sandwich structure
- 2 mm top layer, fabric-reinforced
- Cold bridge-free bocklet doors and flaps with GRP step profile,
- KSD hollow rubber seal and multi-point locking system
- External storage space under rear bed, full vehicle width
- Real glass hinged window
- Real gas roof hatch above seating area
- Gas hot water heater with electric cartridge
- Engine heat exchanger for heating the living area when travelling
- 2kW diesel hot air heating with integrated height set
- Electric underfloor heating bonded over the entire surface in the aisle area under the floor covering
- Marine bathroom roof hatch
- Differential lock front / rear axle
- Fuel tank approx. 300 litres total
- Storage boxes behind rear axle left and right with bevel, lockable, two latches each painted in body colour, suspension chain
Interior and options
- Furniture interior in white laminate surface with black/anthracite ABS plastic edging.

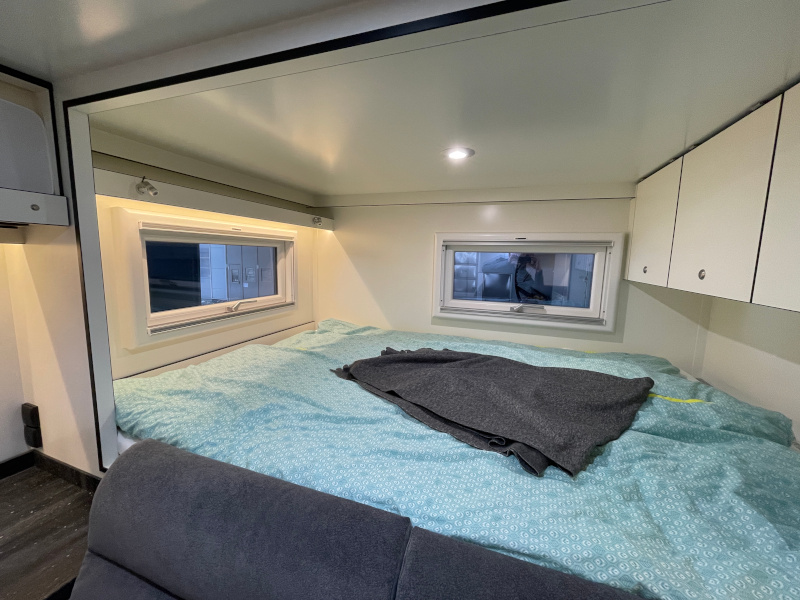

- Fixed rear bed with side dinette seating group in front
- Table can be moved and lowered,
- Seating group can be converted into a bed.
- Wet room with integrated shower at front transverse.
- Access behind cupboard with refrigerator underneath.
- Kitchen unit, wall cupboards and layout according to detailed planning
- All cupboards with smooth fronts and recessed, round stainless steel push-button locks.
- Drawers on high-quality pull-outs with soft-slide-in.
- Flooring, high-quality and robust Vynil flooring glued as planks in stone look
- Kitchen unit with recessed sink and cover, gas-powered 3-burner gas hob/oven combination unit. Resopal-coated worktop.
- Water installation with pressurised water pump and filter, single-lever mixer in shower, bathroom sink and kitchen
- Photovoltaic system 720 WP monocrystalin with MPPT controller
- 12V 2000 W inverter with 50 A automatic battery charger and power control
- Charging system 24V, including charging booster 24/24V 25A for charging the additional battery when driving. In addition, DC/DC charger for charging starter batteries of base vehicle via body batteries.
- Lithium iron phosphate battery Super B 210Ah, 12V with integrated BMS
- Fresh water tank 270 litres
- Waste water tank 130 litres
