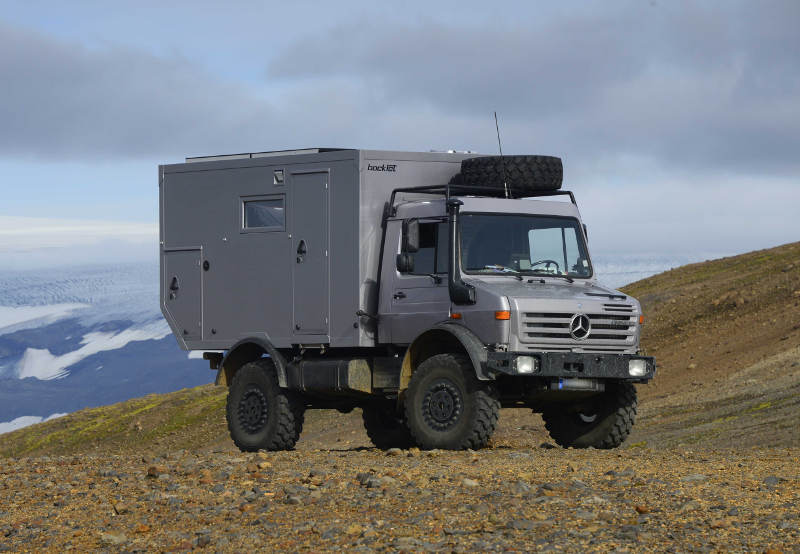

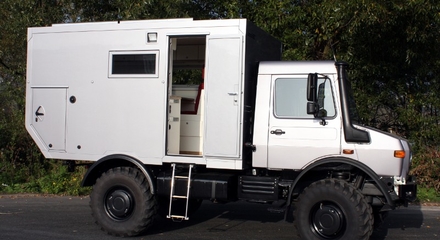

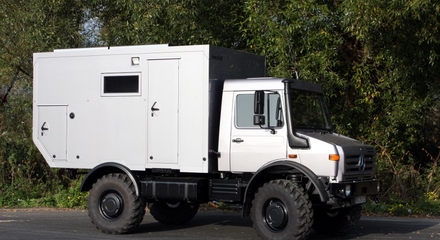

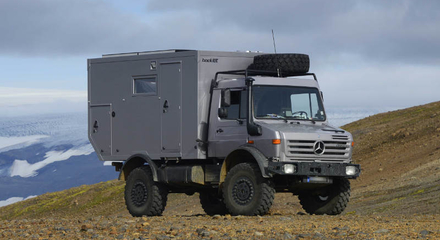

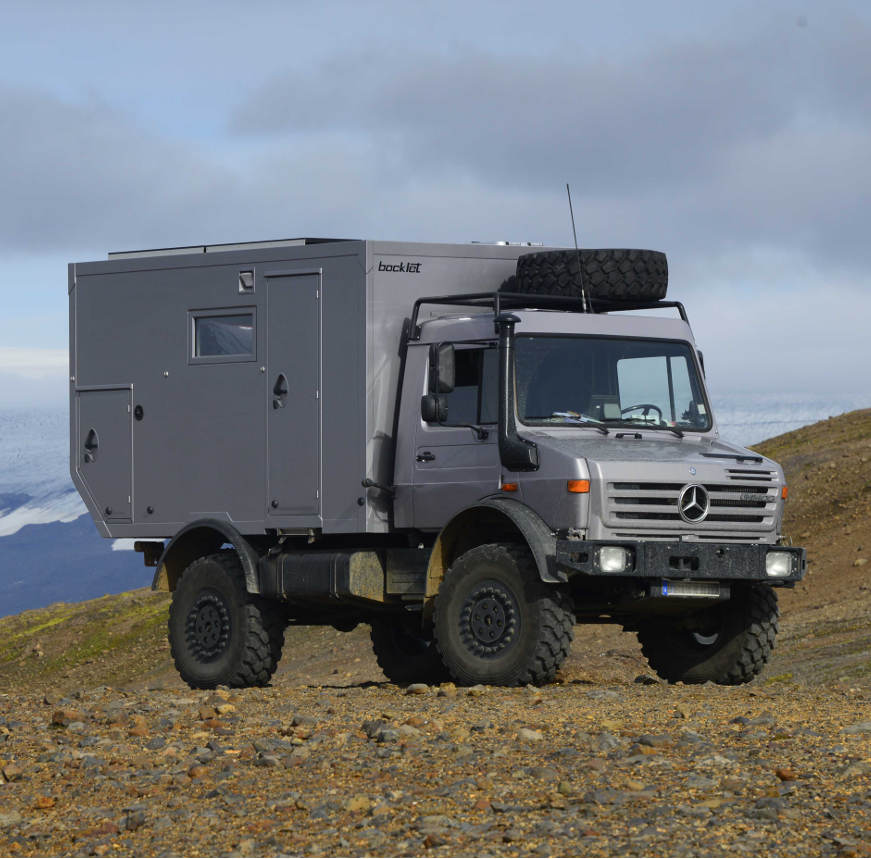

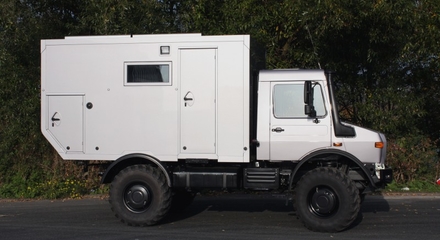

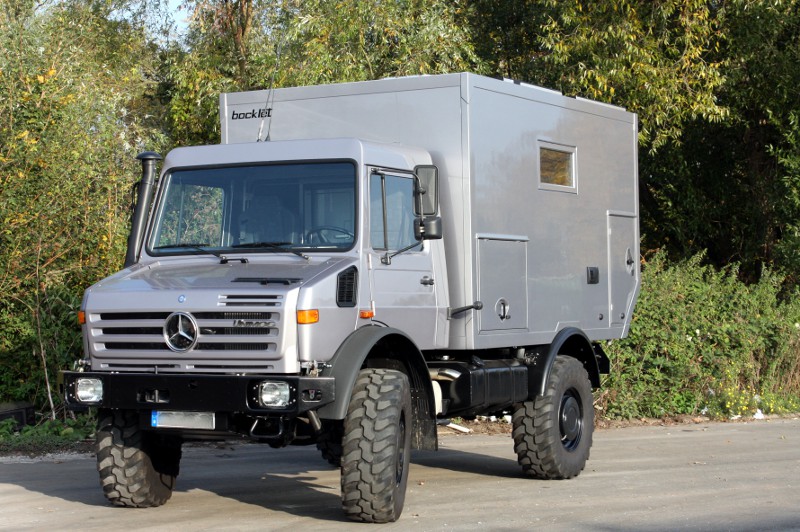

Bocklet
Dakar 600

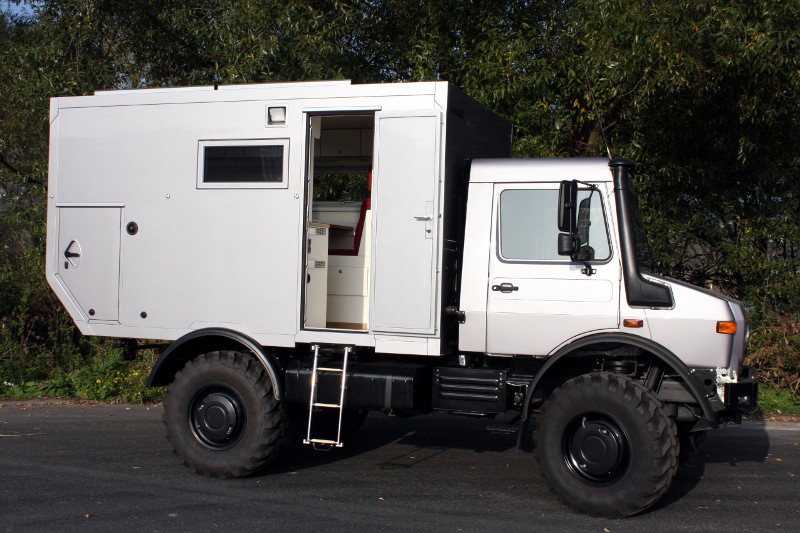

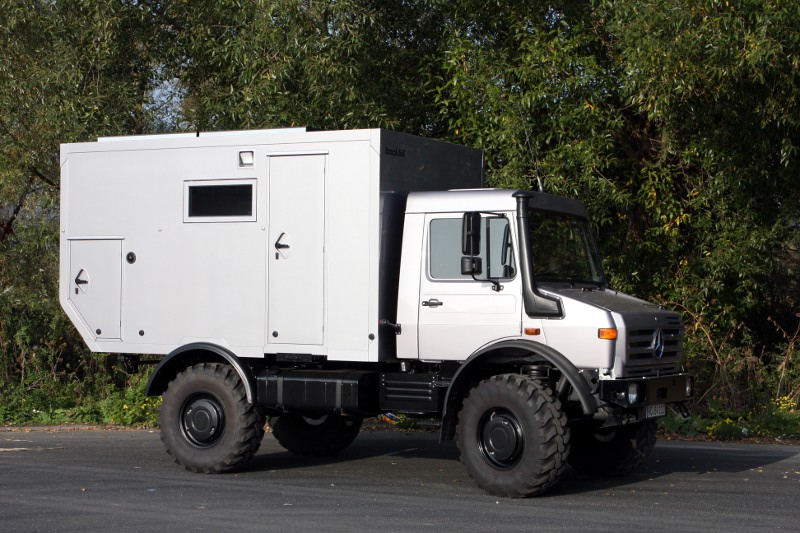

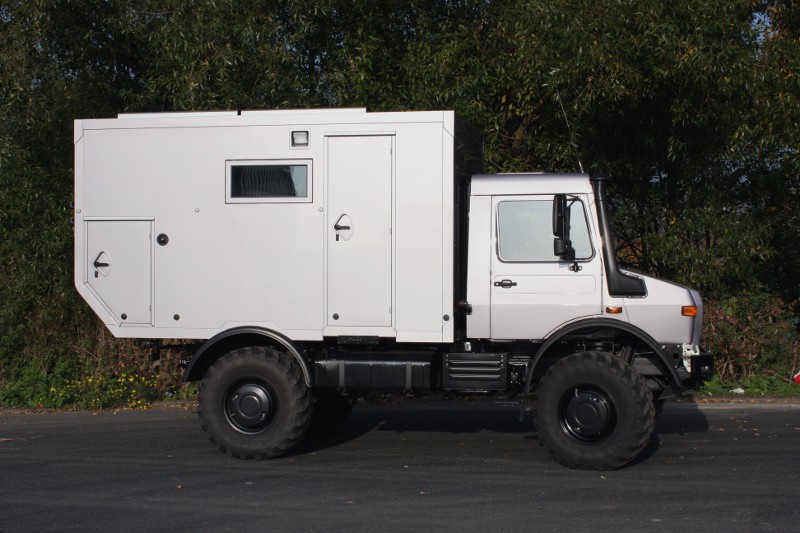

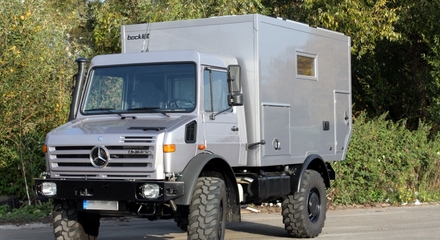

| Chassis | Mercedes-Benz Unimog U435 |
| Wheelbase | 3250 mm |
| GVW | 7.500 kg |
| L x W x H | 5950 mm x 2350 mm x 3340 mm |
Technical Data
Chassis
| Chassis | Mercedes-Benz Unimog U435 |
| Wheelbase | 3250 mm |
| GVW | 7.500 kg |
| Engine | |
| Capacity | |
| Engine power |
Body
| GRP sandwich-construction, free of thermal bridges | |
| Wall thickness | 50 mm |
| Roof thickness | 50 mm |
| Bottom thickness | 60 mm |

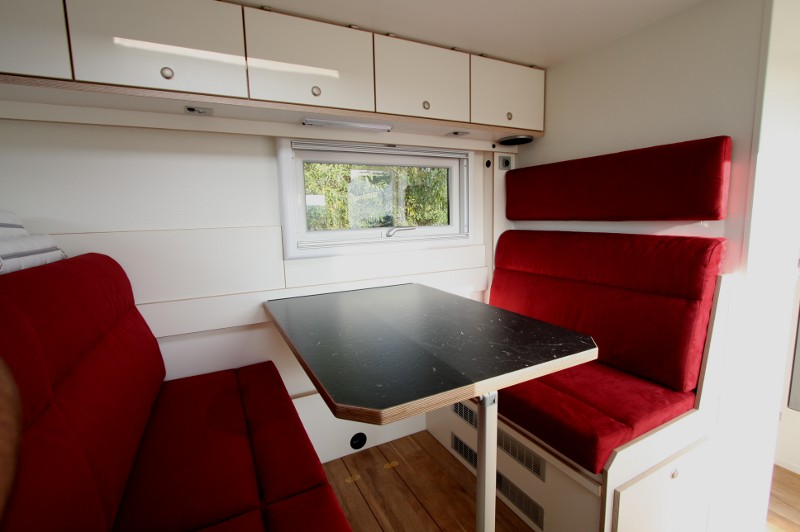

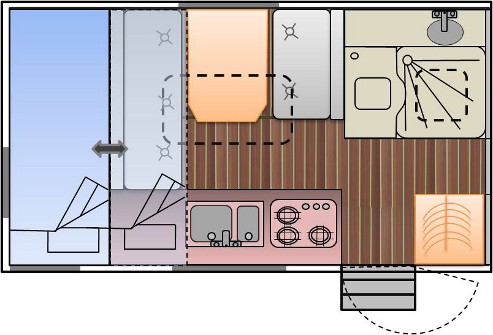

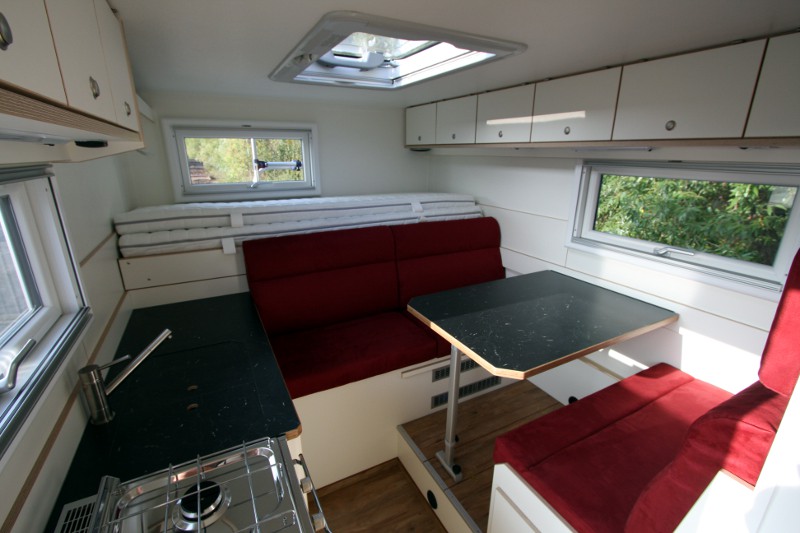

Interior
| Length | 3600 mm |
| Width | 2150 mm |
| Height | 1950 mm |
| Seats with belt | 2 with 3-point belt |
| Front bed | - |
| Rear bed | 2000 x 1400 mm |
Specifications
Chassis and body
- all-wheel-drive
- diff-lock rear-/ front axle
- fuel tank 180 l
- metallic painting
- comfort seats
- radio CD
- free of thermal bridges
- reinforced GRP cover layer 2mm
- bocklet doors and hatches, free of thermal bridges
- outer storrage space beneath rear bed
- KCT hardglas swing-out windows
- skylight Heki 1
- skylight Gebo
- pass to driver cab with lockable door

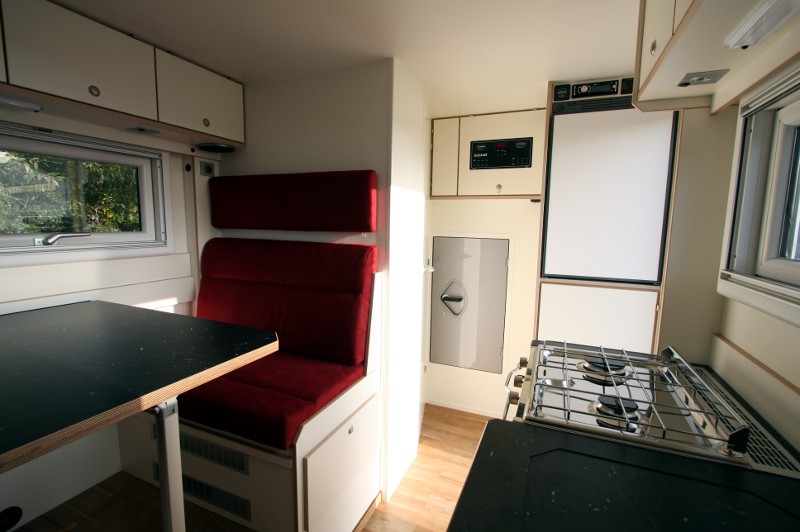

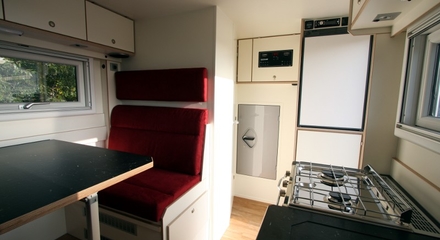

Interior and options

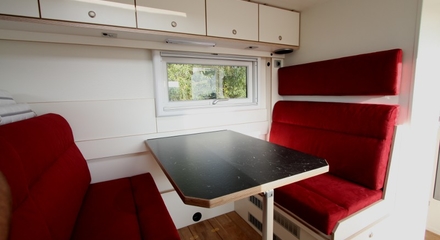

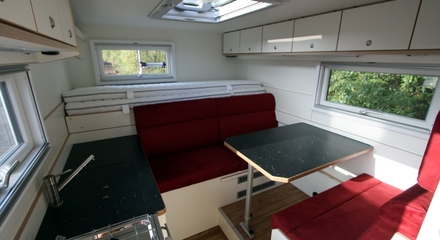

- furniture made of 16mm laminate white
- seat cushion cover alcantara
- double-floor in seating area
- Truma heater
- battery capacity 220Ah
- automatic charger 24 V / 50 A
- inverter 2000 W
- control panel
- energy saving LED lights

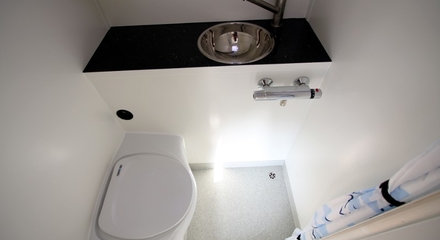

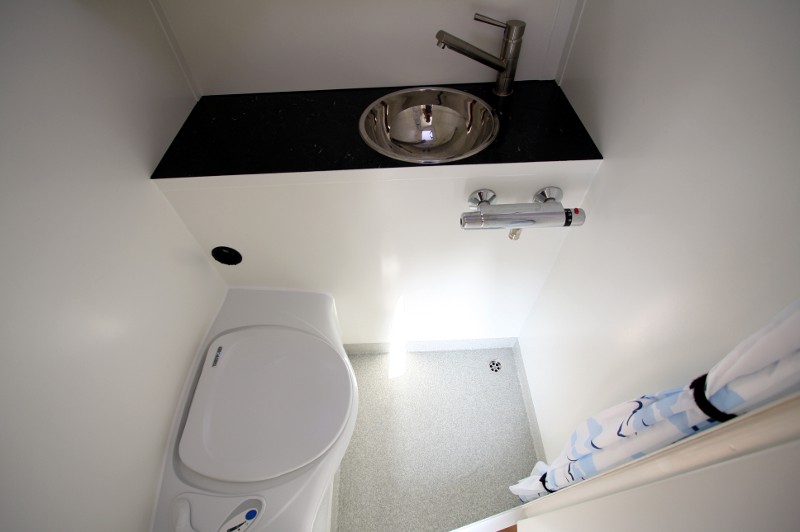

- cassette toilett
- white-armature with single-lever
- 2-flame stove
- compressor frÃdge 90 l
- all tanks inside and heated:
- freshwater 300l
- waste water 60l
