Bocklet
Dakar 859
| Chassis | MAN TGM 18.320 4x4 |
| Wheelbase | 4500mm |
| GVW | 16.500kg |
| L x W x H | 8580mm x 2550mm x 3850mm |

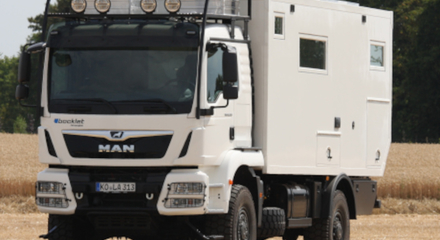

The Bocklet Dakar 859 is suitable for long-distance travelling with comfortable living space

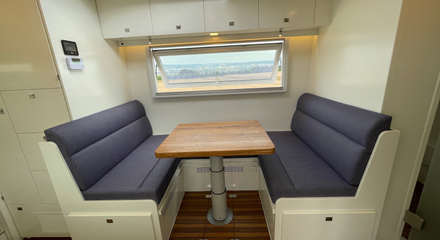

The spacious cab and generous living space are the hallmarks of this Bocklet Dakar long-distance motorhome based on the MAN TGM 4x4. A modern, cosy seating area and kitchen, complemented by two comfortable single beds with storage space underneath in the rear, offer a great feeling of space. The shower and toilet room with washbasin are located separately behind the spacious driver's cab. State-of-the-art technology in terms of energy supply, heating and air conditioning systems make the Dakar 859 a long-distance motorhome for all seasons, even off the beaten track.
Technical Data
Chassis
| Chassis | MAN TGM 18.320 4x4 |
| Wheelbase | 4500mm |
| GVW | 16.500kg |
| Engine | 6-cylinder turbodiesel |
| Capacity | 6871ccm |
| Engine power | 235/320kW/PS |
Body
| Thermal bridge-free GRP sandwich construction | |
| Wall thickness | 50mm |
| Roof thickness | 50mm |
| Bottom thickness | 60mm |
Interior
| Length | 6000mm |
| Width | 2400mm |
| Height | 2100mm |
| Seats with belt | 2 |
| Front bed | |
| Rear bed | 2 |
Specifications
Chassis and body
- MAN 18.320 4x4
- All-wheel drive selectable
- Differential lock rear axle
- Differential lock front axle
- Fuel tanks approx. 550l
- Comfort seats
- Reversing cameras
- 2 seats in the cab
- GRP sandwich body
- Wall/floor thickness 51 / 60 mm
- Top layer 3 mm, fabric-reinforced
- cold bridge-free bocklet doors and flaps with GRP step profile, KSD hollow rubber seal and multi-point lock
- Electric entrance step with automatic control
- Real glass hinged windows
- Real glass roof hatches
- Roof ventilator
- Cab access with lockable door
- Roof rack for storage boxes
- Lamp carrier with LED bars on cab
Interior and options
- furniture made of 16mm wood, white / oak combination
- drawers with Soft Slide-In
- fabric cover seating area
- double floor in seating area
- Diesel - air heating
- Gas- warm water heating with electric power option
- Batteriecapacity 4x220Ah AGM
- Automaticharger 24 V / 50 A
- Inverter 2 kW
- control panel
- LED lightning
- Vacuum toilet
- white-armature with single-leve
- 3-flams stove with oven
- Fridge 110l
- Countertops mineral stone
- Radio CD / Bluetooth
- Tanks inside and frost free:
- freshwater 500l
- grey water 250l
- black water 210l
- automatic Satelite TV system with LED TV
- aircondition in rear body
