Bocklet
Dakar 651
| Chassis | Mercedes-Benz 917 AF |
| Wheelbase | 3100 |
| GVW | 8500 |
| L x W x H | 6500 x 2500 x 3500 |

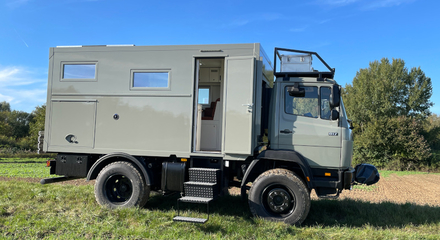

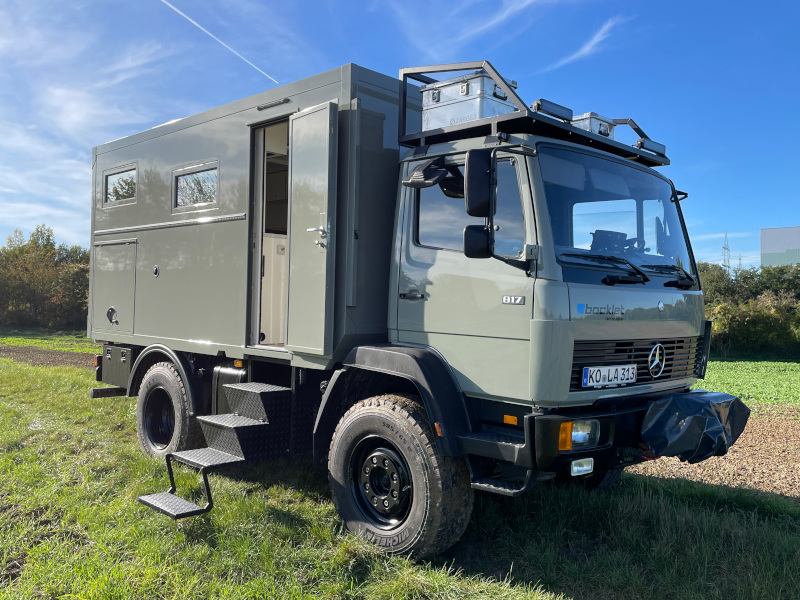

As a compact yet spacious long-distance motorhome, this mobile is based on a classic Mercedes Benz 917 4x4 in great refurbished condition. The body and equipment have been specially adapted to the customer's needs.
The layout is impressive with a sleeping area in the rear that can be separated by a sliding roller shutter and a spacious living area in front of it. The cozy leather upholstered seating area invites you to sit comfortably, the kitchen impresses with a mineral stone worktop and sufficient freedom of movement and storage space in this practically designed vehicle. The bathroom with composting toilet and integrated shower offers a high level of space economy and allows a wide and central passageway into the cab.
Technical Data
Chassis
| Chassis | Mercedes-Benz 917 AF |
| Wheelbase | 3100 |
| GVW | 8500 |
| Engine | 6 cylinder turbo diesel |
| Capacity | 5958 |
| Engine power | 121 |
Body
| cold bridge-free GRP sandwich construction | |
| Wall thickness | 50 |
| Roof thickness | 50 |
| Bottom thickness | 60 |
Interior
| Length | 4285 |
| Width | 2250 |
| Height | 1980 |
| Seats with belt | 2 |
| Front bed | |
| Rear bed | 2 |
Specifications
Chassis and body
- All-wheel drive
- 2 seats in the cab
- GRP sandwich body with no cold bridges
- Wall/floor thickness 51 / 60 mm
- Top layer 3 mm, fabric-reinforced
- Cold bridge-free bocklet doors and flaps with GRP step profile, KSD hollow rubber seal and multi-point lock
- Real glass hinged windows
- Real glass roof hatches
- Swing-out electric access steps with automatic control
- Lockable folding ladder Bocklet
- Cab access with lockable door
- Customised roof rack Aluminum
- Extendable bicycle rack for rear garage for two bicycles
Interior and options
- Leather seats
- Double floor in the bench seat area
- Gas hot-air heating with integrated boiler and 230V catridge
- Auxiliary diesel heater 2kW
- Automatic charger 24 V / 50 A
- Inverter 2 kW with battery charging
- Solar system 760W with MPPT controller
- Control panel with ampere-hour counter
- Electrical energy concept with 200AH 24V (5120Wh), battery management system, charging booster 25A with lithium characteristic curve, charging function for base vehicle batteries
- Lighting LED spotlights and line lights
- Household fittings with single-lever mixer
- 2-burner hob, stainless steel double sink
- 130 litre compressor refrigerator
- Kitchen worktop and washbasin in mineral stone
- Tanks inside and heated:
- - Fresh water tank 350l
- - Waste water tank 150 litres
- gas bottles 11kg
- Outdoor shower in rear garage on the right, hot/cold with shower hose
