Bocklet
Ando 788
| Chassis | Iveco Daily 4x2 |
| Wheelbase | 4350mm |
| GVW | 7490kg |
| L x W x H | 6723mm x 2300mm x 2766mm |

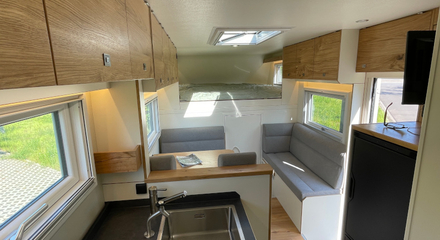

The Ando 788 is the ideal vehicle for the family. The fronts of the real wood furniture are veneered in naturally grown wild oak. The combination with the easy-care coated side and interior walls offers maximum user comfort. In addition to the comfortable bed in the alcove for two people, the bunk bed in the rear offers generous space for two more travellers to relax. State-of-the-art technology and plenty of storage space are integrated into the design of the double floor, so that there are no limits to a cosy living experience. The wet room with separate shower, the optimally planned corner kitchen and the comfortable dinette seating group complete the feel-good concept of this well thought-out vehicle. The Ando 788 invites you to discover Europe and the world!
Technical Data
Chassis
| Chassis | Iveco Daily 4x2 |
| Wheelbase | 4350mm |
| GVW | 7490kg |
| Engine | 4 cylinder Diesel |
| Capacity | 2998ccm |
| Engine power | 152KW/206PS |
Body
| cold bridge-free GRP sandwich construction | |
| Wall thickness | 50mm |
| Roof thickness | 50mm |
| Bottom thickness | 60mm |
Interior
| Length | 5173mm |
| Width | 2200mm |
| Height | 2390 |
| Seats with belt | 4 |
| Front bed | 2 |
| Rear bed | 2 |
Specifications
Chassis and body
- Comfort seats
- Radio equipment with electrical installation
- Reversing camera, with 5’ colour monitor, electric locking cap and heating
- GRP sandwich construction with no cold bridges
- 2 mm top layer, fabric-reinforced
- Cold bridge-free bocklet doors and flaps with GRP step profile, KSD hollow rubber seal and multi-point locking system
- Side wall awning painted in body colour
- Electric entrance step with automatic control
- Real glass hinged windows
- Real glass roof hatches
- Cab access with lockable door
- Chassis lowering with trailer coupling
- Ambient lighting LED side wall individually switchable
Interior and options
- Furniture interior in wild oak real wood veneer mix, white CPL surfaces and white lacquered surfaces
- Transverse bunk beds in the rear of the vehicle with garage underneath
- Transverse beds in the alcove
- Front left dinette seating area with longitudinal bench on the driver's side
- Seat upholstery with fabric cover
- All cupboards with smooth fronts and recessed push-button locks
- Gas-fuelled hot water heater with electric cartridge
- Engine heat exchanger for heating while driving
- Battery capacity 1x300Ah lithium batteries with switch-on control
- Additional DC/DC charger for charging the vehicle battery
- Automatic charger 12V /80 A
- Charging booster 70A
- PV system 2x 360 WP with MPPT controller
- Control panel with ampere-hour counter
- LED lighting spots, ceiling spots, indirect
- Household taps with single-lever mixer
- 3-burner hob
- Gas oven with grill
- Compressor fridge with separate ice compartment
- Tanks inside and heated:
- Fresh water tank approx. 280 litres
- Waste water tank approx. 150 litres
- Bathroom with washbasin and small countertop basin, mirror cabinet on outer wall and customised shower tray with anti-slip coating
- Separating toilet with ventilation
